Surge protection PROCET PT-PR01G-DIN, mounting on DIN, PoE up to 100W

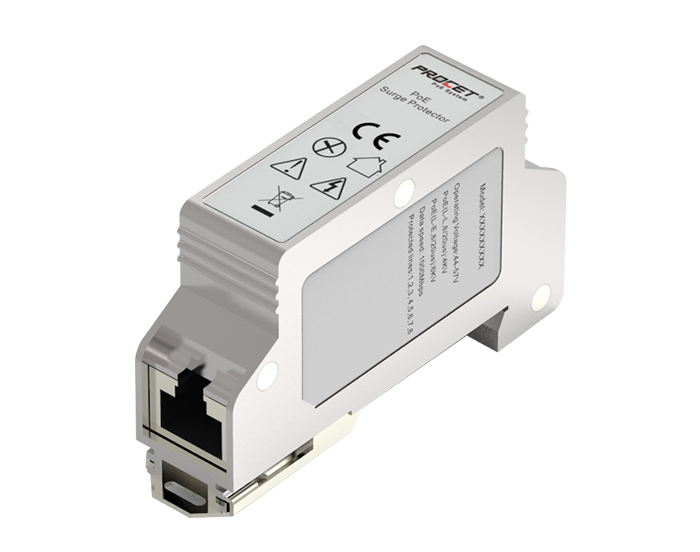

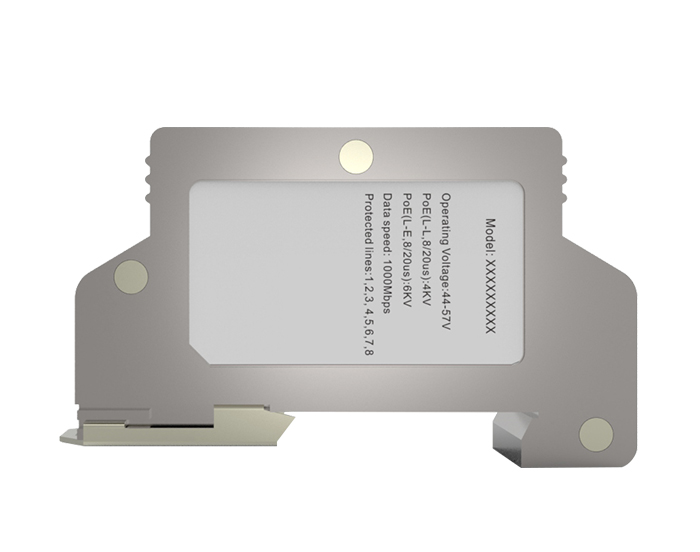

PT-PR01G-DIN is a single-port industrial PoE surge protector designed for exterior complex backhaul and networking applications with an IP 40 rated Zinc alloy shell. It provides surge protection for all PoE wires - 10 kV surge protection and four Level protection for SPD technology, peak Surge Current up to 10 kA. It supports 10/100/1000Mbps of data rates. Ideal for 110 W PoE devices. The PT-PR01G-DIN operates from -40°C to +85°C and with voltage max 60 VDC.

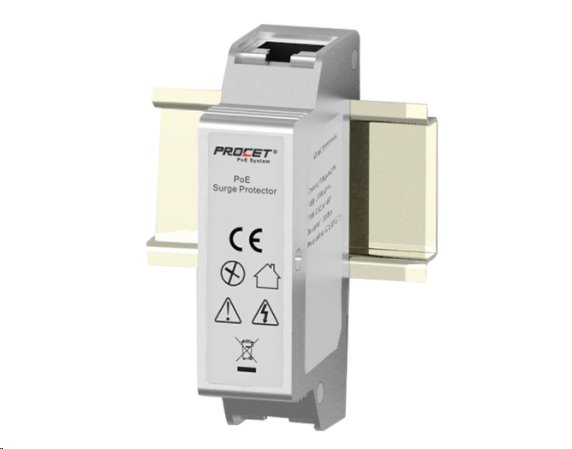

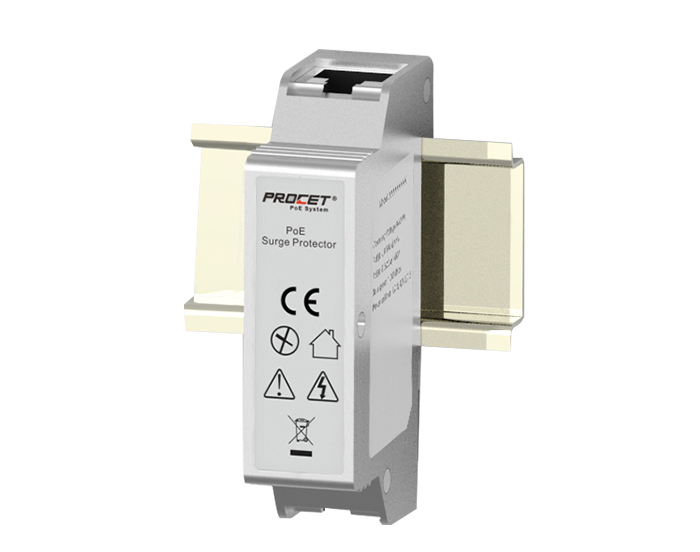

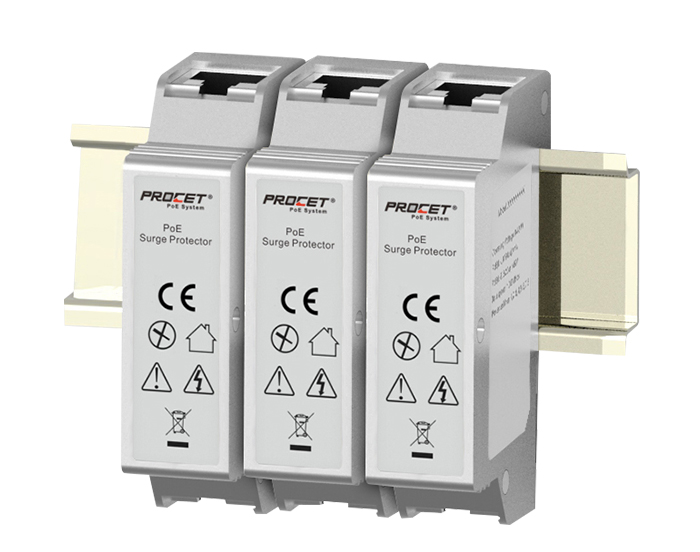

This model is equipped with standard DIN rail mounting bracket, which can easily jam into the guide rail. The DIN rail as a ground wire to transmit the current to the earth.   PoE protection



• Max Discharge Current: 10 kA (8/20us, 1,25 kA per vodič)
• Protected Line: 1,2,3,4,5,6,7,8
• Common Mode Protection Level (10/700us): 10 kV
• Differential Mode Protection Level (10/700us): 1,5 kV
• Insertion Loss @10MHz/100MHz -1 dB
• Return Loss @10MHz/100MHz: -20 dB
• Response Time: 5ns



• Ethernet standard: 10/100/1000 Mbps
• PoE standard: 4/5 (+), 7/8 (–) and 3/6(+), 1/2(-), 44-60 VDC, 110 W
• Konektory: Stíněné RJ-45
• Dimensions: 75 x 46 x 19 mm
• Weight: 115 g
